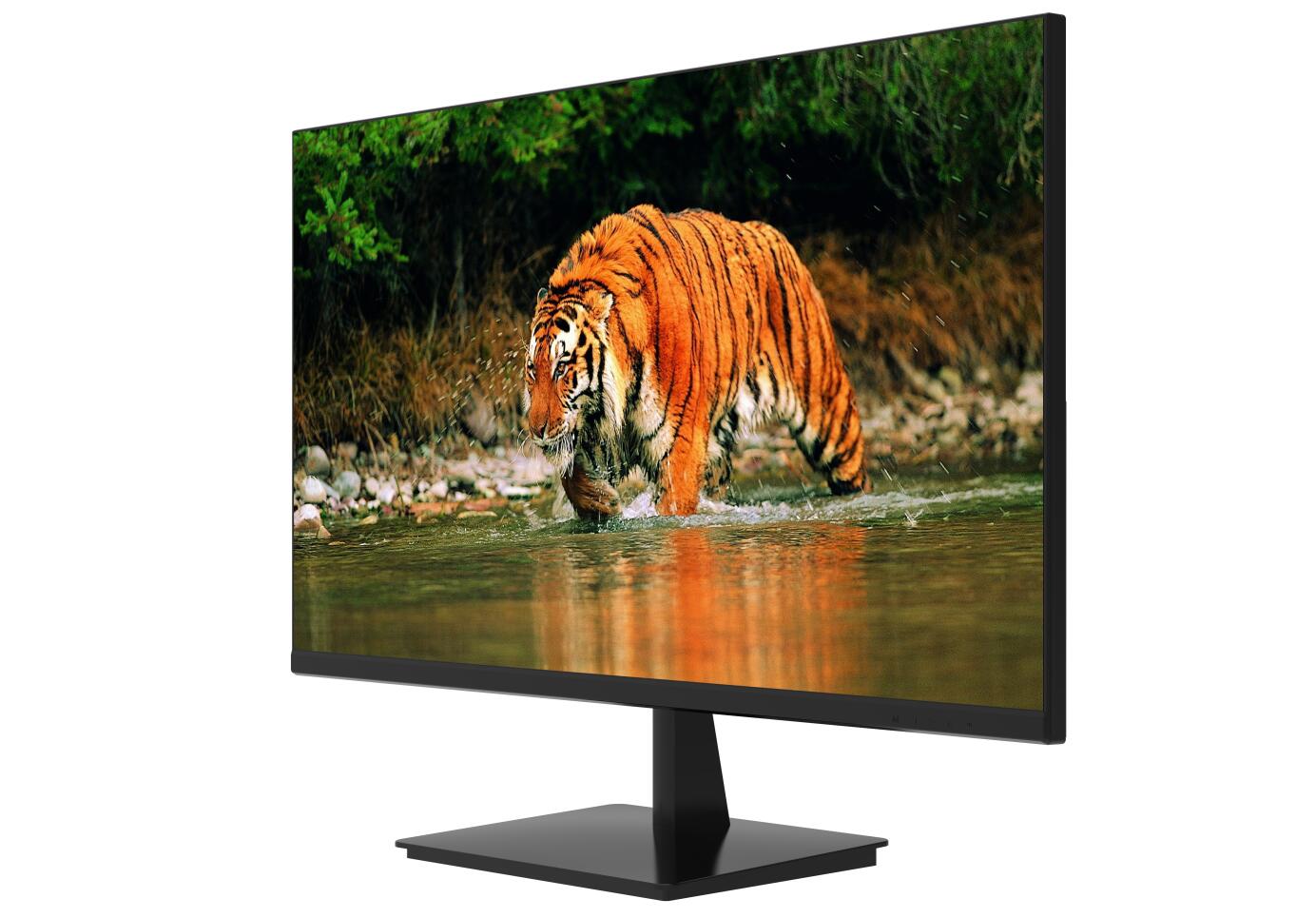

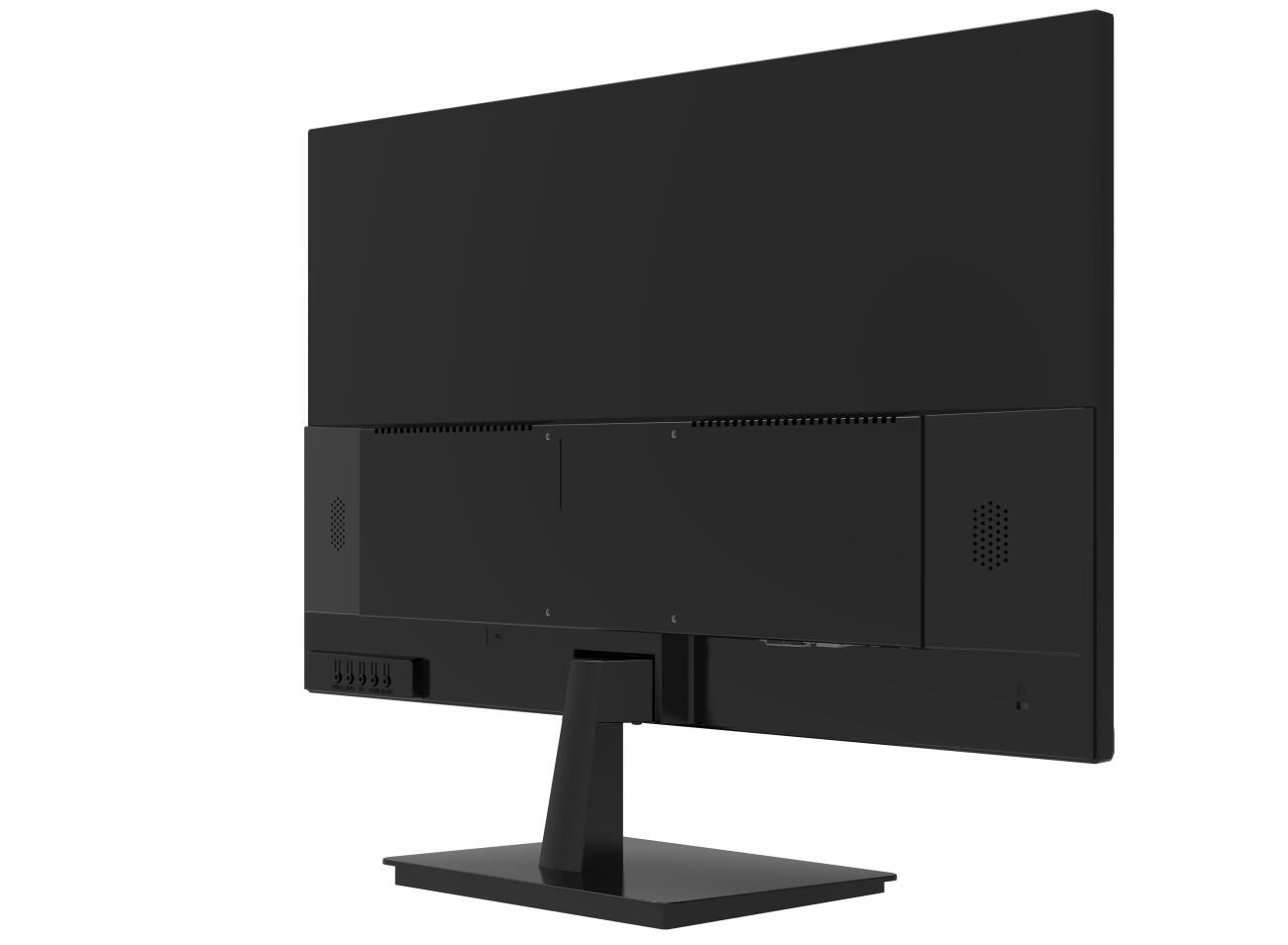

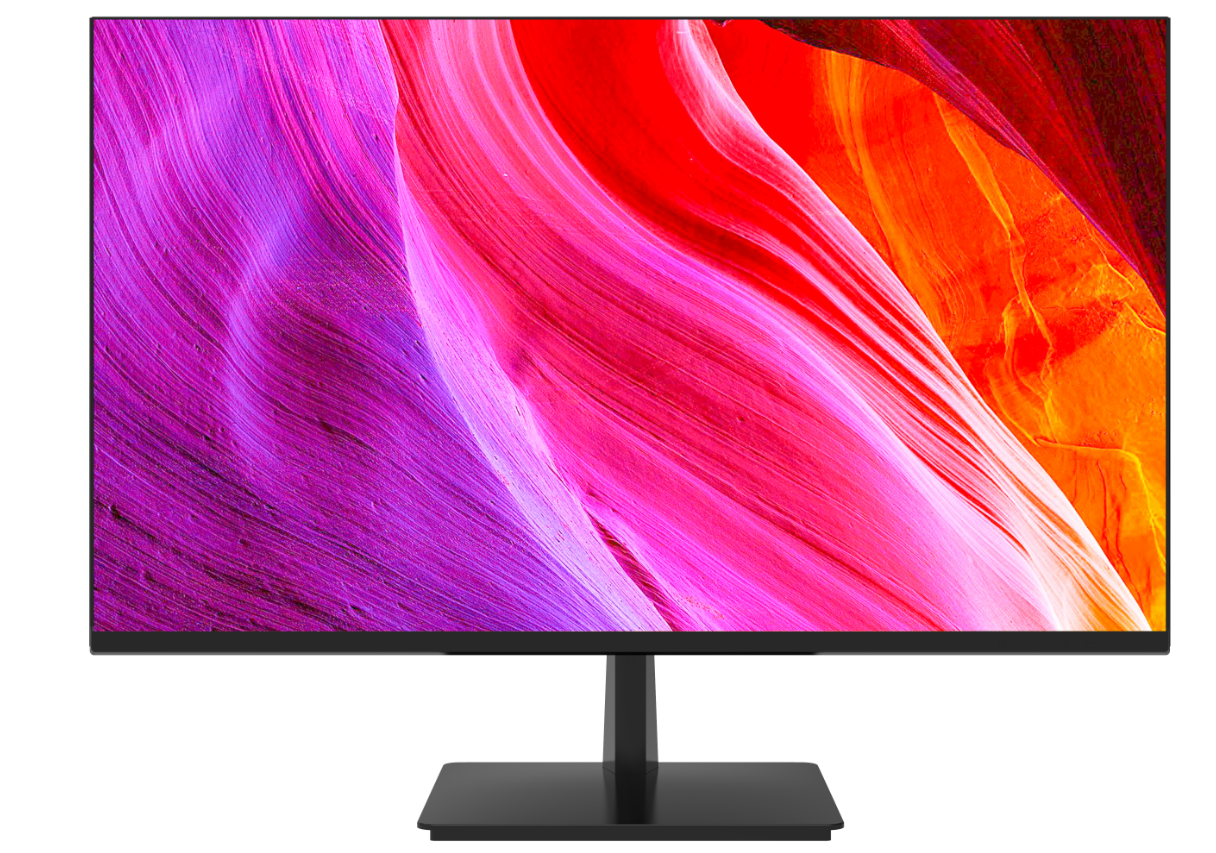

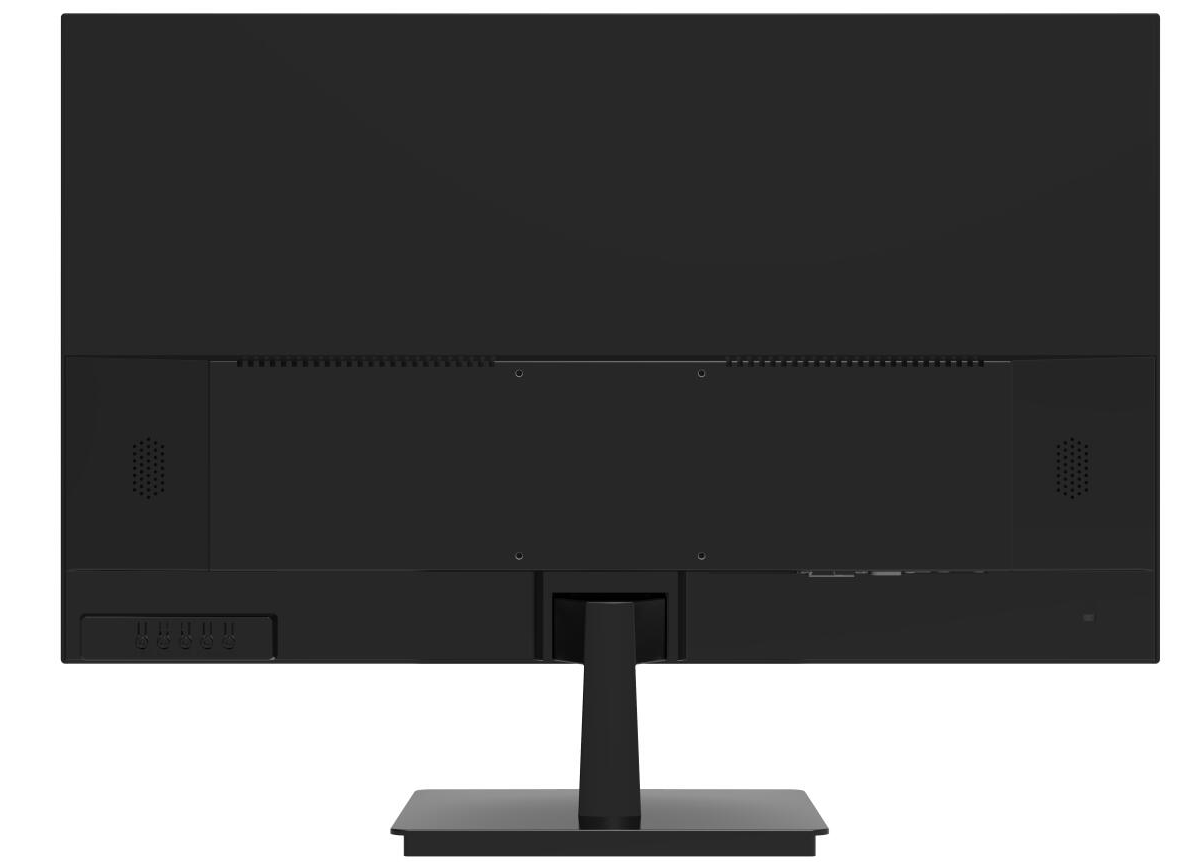

22寸便攜臺式電腦顯示器家用辦公監控高清液晶顯示屏
規格
產品尺寸595*110*395
產品凈重4.3
是否支持壁掛支持壁掛壁掛規格 75x75mm
電源外接電源適配器底座 普通
顯示
長寬比 16:9
亮度 250cd/m2
對比度 1,000,000:1 DCR
分辨率 1920X1080
響應時間：5ms(G2G)
可視角度 178º/178º
接口
VGA1個
音頻/耳機輸出1個
HDMI®1個
包裝清單
顯示器x1、底座x1、電源適配器*1、 HDMI®線*1、產品使用說明書*1
| Model No.: | QA22DFE | QA24DFE | QA27DFE | |
| Display | Screen Size | 21.5” | 23.8" | 27" |
| Backlight type | LED | |||
| Aspect Ratio | 16：9 | |||
| Brightness (Typical) | 250 cd/m² | |||
| Contrast Ratio (Typical) | 1,000,000:1 DCR (1000:1 Static CR) | |||
| Resolution (Max.) | 1920 x 1080 | |||
| Response Time (Typical) | 5ms(G2G) | |||
| Viewing Angle (Horizontal/Vertical) | 178º/178º (CR>10) ， IPS Technology | |||
| Color Support | 16.7M, 8Bit, 72% NTSC | |||
| Signal input | Video Signal | Analog RGB/Digital | ||
| Sync. Signal | Separate H/V, Composite, SOG | |||
| Connector | VGA+HDMI+BNC in+ BNC looping | |||
| Power | Power Consumption | Typical 22W | Typical 24W | Typical 30W |
| Stand By Power (DPMS) | <0.5W | |||
| Type | DC 12V 3A | |||
| Features | Plug & Play | Supported | ||
| Bezeless Design | 3 side Bezeless Design | |||
| Cabinet Color | Matt Black | |||
| VESA Mount | 75x75mm | 100x100mm | ||
| Remote Control | Supported | |||
| Anti Picture Burn In | Supported | |||
| Quality Warranty | 3 years | |||
| Audio | 2x2W | |||
| Accessories | HDMI cable, Remote Control, Power Supply, Power Cord, user's manual | |||
| MOQ | 200 pcs of each model | |||
